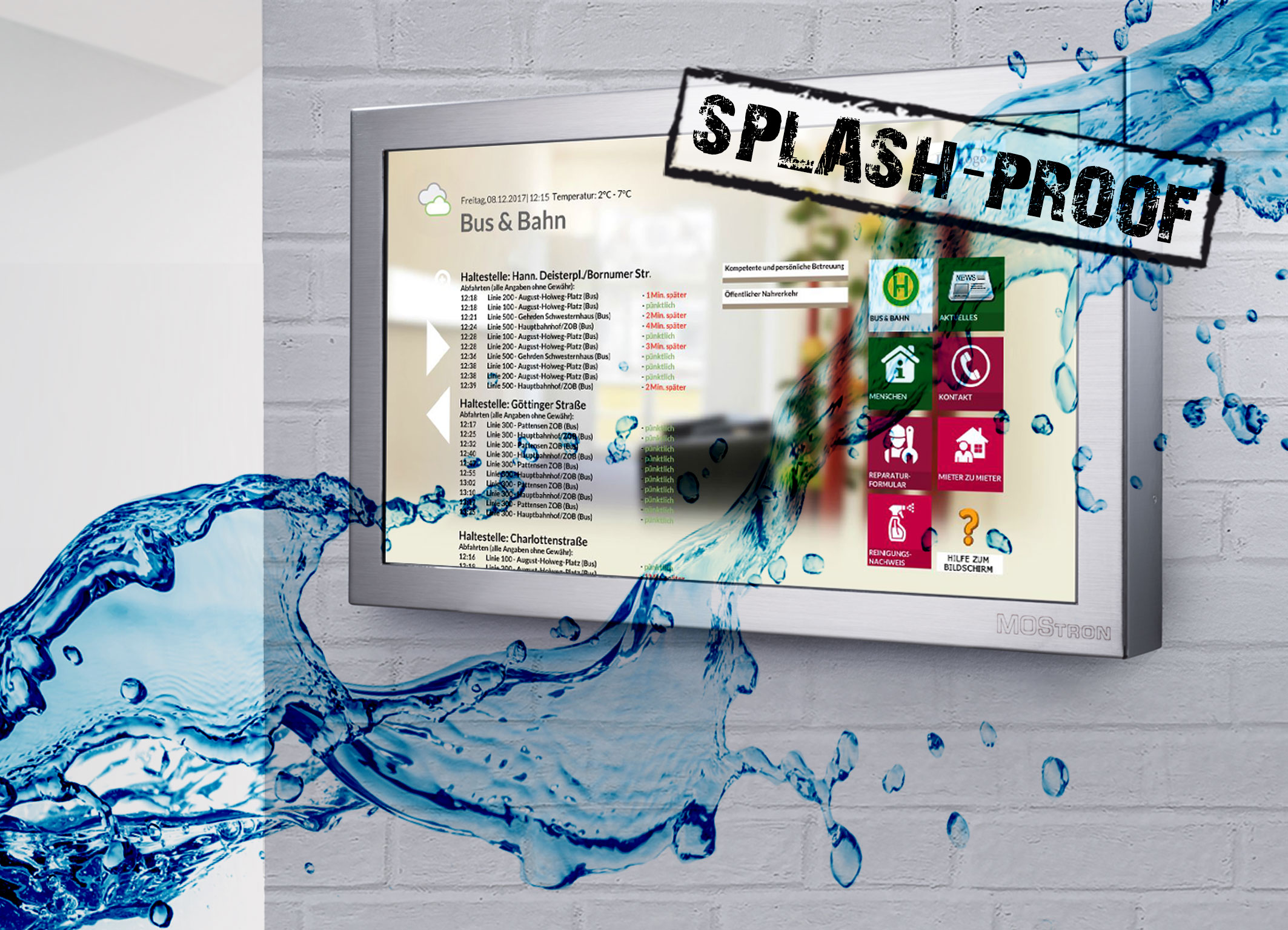

NeptunTouch24 – splash-proof touch display

NeptunTouch24 – splash-proof touch display

With the NeptunTouch24, we have developed a device that can withstand almost any weather conditions. In addition to our outdoor stele, we now also have an outdoor device in our portfolio that can be mounted on the wall.

It can rain, storm or snow: the NeptunTouch24 is splash-proof and works even at temperatures of minus 20 to plus 40 degrees. The screen, which is designed for continuous operation, can simply be attached to the wall of the building and does not need to be covered. The “Neptun” model is also optimally protected against vandalism thanks to its safety glass and stainless steel frame.

  • Can be operated by touch
  • Vandal-proof metal housing with special wall mounting plate
  • No freely accessible connections, no exposed cables: due to the direct entry of cable systems from the wall of the building into the housing, there is hardly any possibility of the device function and reliability being rendered inoperable by external damage to the cable system
  • Splash-proof, also functional in rain or snow
Display size24″
Resolution | Format1920 x 1080 pixels (RGB) | 16:9
Touch screenProjected capacitive 10-finger multi-touch
ConnectionsMains voltage supply 85 – 264 VAC via C13 IEC plug, splash water protection only in conjunction with fuse holder, no warranty in the event of incorrect installation
SecurityChrome steel housing closed on all sides without color coating,
Splash water protection only guaranteed with safety bracket at the mains input and when using the union plug for LAN connection
Mounting typeSurface-mounted with supplied wall mounting plate
Theft protectionLockable housing with security lock
Data sheet
Technical drawing
General downloads

Do you have any questions about our splash-proof NeptunTouch24?

    “]
