| Display size | 17″ TFT with True Color resolution and LED backlight |
| Resolution | Format | 1920 x 1024 pixels (RGB) | 4:3 |
| Touch screen | with PC Touch, internal USB connection |
| Processor support | Intel Celeron CPU J1900 CPU, 4 cores, 2.0 GHz/2.42 GHz burst, TDP 10W |
| Chipset | Intel Bay Trail SoC |
| Cooling | Convection-cooled housing closed on all sides with profiled aluminum rear panel for use even under difficult conditions |

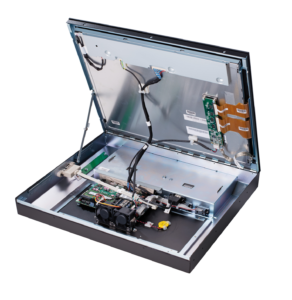

| Service | Hinged front unit |
| Connection cable fixation | Removable support plate with individual cable lugs and earthing connection |
| Connections | 2 x GB-LAN 1 x USB 3.0 port 6 x USB 2.0 ports (2x on the side of the housing) 3 x serial port (DSUB-9) 1 x DVI-I port 1 x audio line-out stereo (3.5 mm jack socket) 1 x WLAN/BT antenna connection (optional) 1 x DC power supply (round socket 2.5/5.5 mm) |
| Mounting type | VESA-100 with M6 threaded holes |
